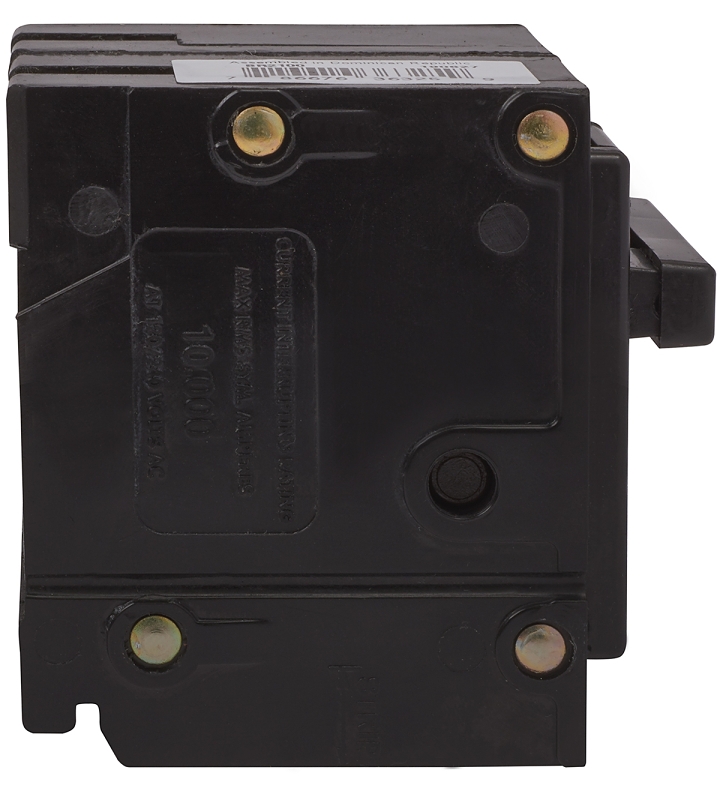

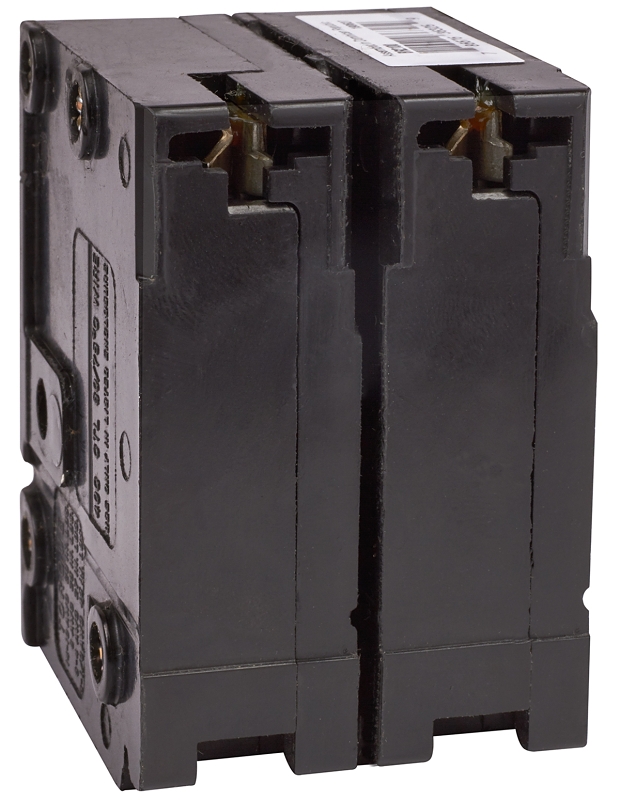

Cutler-Hammer BR260 Circuit Breaker, Mini, Type BR, 60 A, 2 -Pole, 120/240 V, Plug Mounting

Cutler-Hammer

Cutler-Hammer BR260 Circuit Breaker, Mini, Type BR, 60 A, 2 -Pole, 120/240 V, Plug Mounting

$29.99$29.99
Cutler-Hammer BR260 Circuit Breaker, Mini, Type BR, 60 A, 2 -Pole, 120/240 V, Plug Mounting
  • Actuator Type: Quick-Make Quick-Break
  • Current Rating: 60
  • Dimensions: 2.93 in L x 1.96 in W x 2.92 in H
  • Interrupt Rating: 42
  • Mounting Type: Plug
  • Model #: BR260
  • UPC #: 786676363105
  • SKU: 2531051

Your shopping list will be used for pickup in-store

Product Details

Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker.

Key Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design

Item Specifications

Actuator TypeQuick-Make Quick-Break
Current Rating60
Dimensions2.93 in L x 1.96 in W x 2.92 in H
Interrupt Rating42
Mounting TypePlug
Number of Phases1
Number of Poles2
Operating Frequency50/60
Operating Temperature60 to 75
TypeMini Type BR
Voltage Rating120/240
Wire Size8 to 1/0
MORE DETAILS:
  • Application: For overload and short circuit protection of home electrical system
  • Warranty: 10 Year Limited
