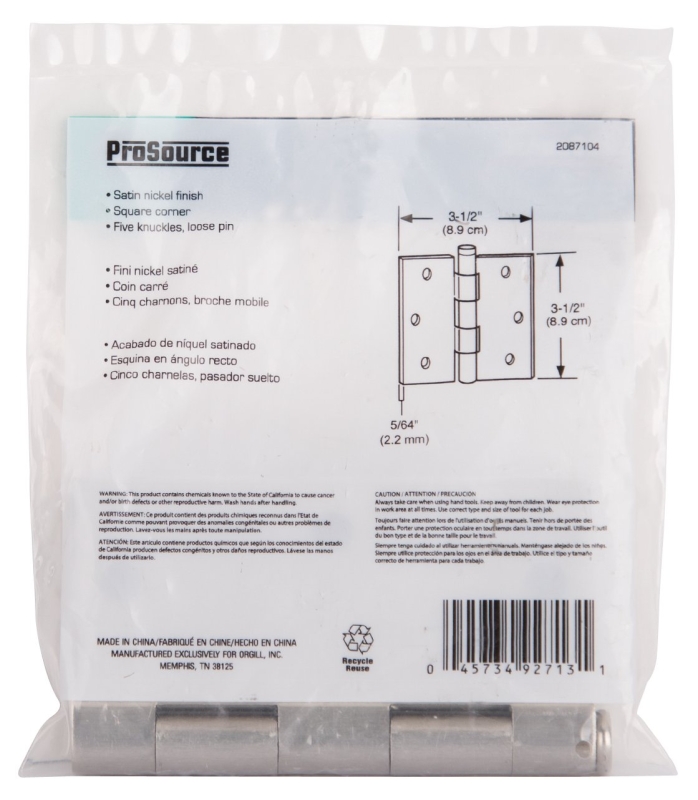

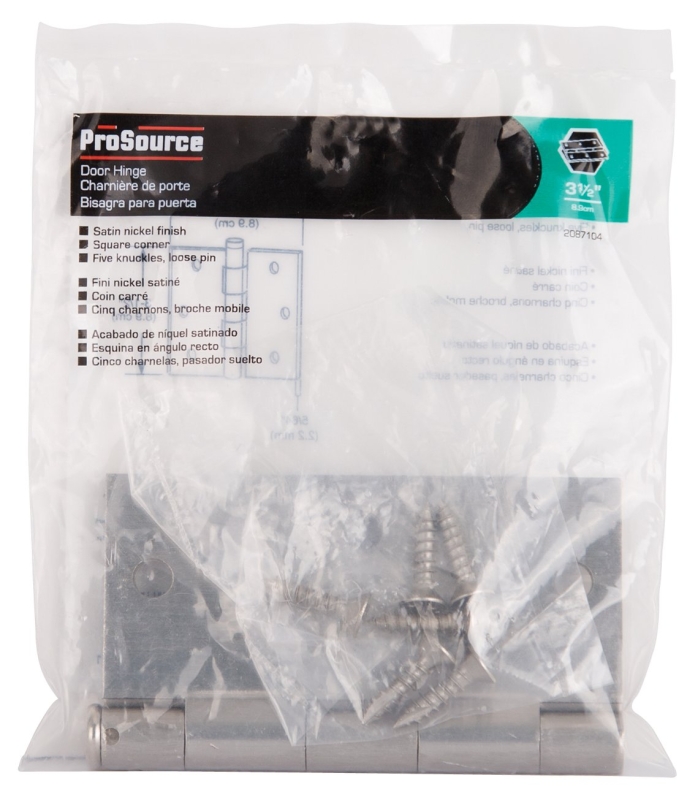

ProSource 20338SNX Square Corner Door Hinge, Steel, Satin Nickel, Loose Pin, 180 deg Range of Motion

ProSource

ProSource 20338SNX Square Corner Door Hinge, Steel, Satin Nickel, Loose Pin, 180 deg Range of Motion

$4.59$4.59
ProSource 20338SNX Square Corner Door Hinge, Steel, Satin Nickel, Loose Pin, 180 deg Range of Motion
  • Color: Satin Nickel
  • Dimensions: 3-1/2 x 3-1/2 in
  • Door Leaf Height: 3-5/8 in
  • Door Leaf Thickness: 2.2 mm
  • Door Leaf Width: 1-1/2 in
  • Model #: 20338SNX
  • UPC #: 045734927131
  • SKU: 2087104

Your shopping list will be used for pickup in-store

Product Details

A creaking door at your place, don't get too worked up about it since there is a remedy to that. Those days of creaking or breaking hinges are over with this hinge - the door control hinge you need. It's great for interior and exterior applications. Suitable to use on all non-commercial interior, exterior doors or wood furniture, this corner hinge is the best. With this hinge, you are getting a high-quality fitting. This hinge can hold a light to medium weighted doors. You have to do very little maintenance. Overall, it s well with most types of doors and better with aluminum ones. Once installed, this hinge makes the opening of doors very easy.

Key Features

  • Satin nickel finish
  • Dimensions: 3-1/2 x 3-1/2 in
  • Five knuckles, loose pin

Item Specifications

ColorSatin Nickel
Dimensions3-1/2 x 3-1/2 in
Door Leaf Height3-5/8 in
Door Leaf Thickness2.2 mm
Door Leaf Width1-1/2 in
Door Thickness1-3/4 in
FinishSatin Nickel
Hole Spacing1-1/2 in
IncludesScrews
Knuckle Diameter6.3 mm
Knuckle Length24 mm
MaterialSteel
Mounting Hole Diameter6 mm
Mounting TypeScrew Mount
Number of Knuckles5
Number of Mounting Holes6
Pin Diameter5.5 mm
Pin TypeLoose
Range of Motion180 deg
MORE DETAILS:
  • Application: For residential applications
