Halo H7ICT Screw Base Housing, 6 in Dia Recessed Can, Aluminum

Halo

Halo H7ICT Screw Base Housing, 6 in Dia Recessed Can, Aluminum

$12.99$12.99
Halo H7ICT Screw Base Housing, 6 in Dia Recessed Can, Aluminum
  • Ceiling Opening Size: 6-1/2 in
  • Ceiling Type: Insulated
  • Dimensions: 10-1/2 in L x 7-1/2 in W
  • Includes: (3) 4-Port Push-In Quick-Connect Wire Nuts Overspray Protector Bar Hanger Junction box
  • Material: Aluminum
  • Model #: H7ICT
  • UPC #: 080083609680
  • SKU: 5524277

Your shopping list will be used for pickup in-store

Product Details

The H7 recessed housing is the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. H7ICT is for installations where the housing will be in direct contact with insulation. H7ICT may be converted into AIR-TITE installation when used with AIR-TITE trim.

Key Features

  • Got nail, bar hangers with pre-installed nail and integral T-grid clip
  • Q-channel interlocking hanger bars
  • Full-sized feed through rated junction box
  • Socket bracket adjusts lamp to various trim styles and designs
  • Aluminum construction for greater heat dissipation
  • Porcelain socket with nickel-plated brass screw shell
  • Self-resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation

Item Specifications

Ceiling Opening Size6-1/2 in
Ceiling TypeInsulated

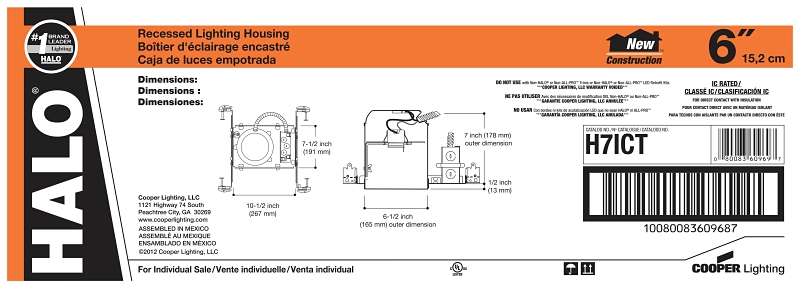

Dimensions10-1/2 in L x 7-1/2 in W
Includes(3) 4-Port Push-In Quick-Connect Wire Nuts Overspray Protector Bar Hanger Junction box
MaterialAluminum
Mounting TypeRecessed
Recessed Can Diameter6 in
Recessed Depth7 in
Suitable for30 74 76 78 170171 172173 300 310 312 327 328 353 376 378 404 420 426 429 430 478 4041 42616100 6101 6102 6103 6106 6107 6108 6109 6110 6120 6121 6125 6126 6130 6145 6146 6150 6162 6170 6215 6222 6230 6255 30SBAT Trims

WARNING: California Residents see Prop 65 Warnings
