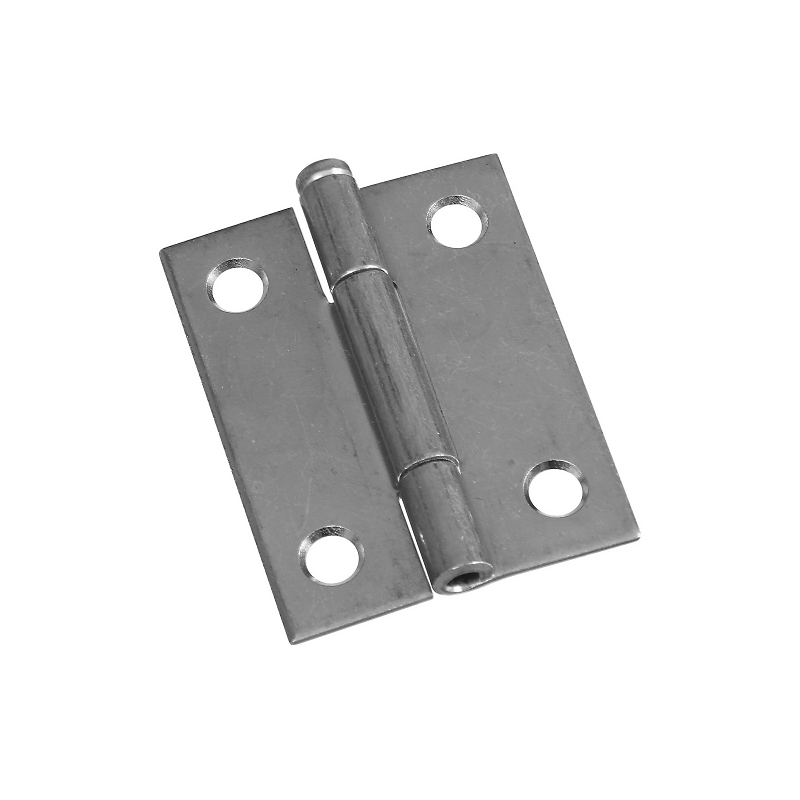

National Hardware N141-838 Narrow Hinge, 2 in W Frame Leaf, 0.056 in Thick Frame Leaf, Steel, Zinc, Removable, Loose Pin

National Hardware

National Hardware N141-838 Narrow Hinge, 2 in W Frame Leaf, 0.056 in Thick Frame Leaf, Steel, Zinc, Removable, Loose Pin

$5.99$5.99
National Hardware N141-838 Narrow Hinge, 2 in W Frame Leaf, 0.056 in Thick Frame Leaf, Steel, Zinc, Removable, Loose Pin
  • Dimensions: 1.564 in L x 2 in W
  • Door Leaf Thickness: 0.056 in
  • Door Leaf Width: 2 in
  • Finish: Zinc
  • Frame Leaf Thickness: 0.056 in
  • Model #: N141-838
  • UPC #: 038613141834
  • SKU: 7156433

Your shopping list will be used for pickup in-store

Product Details

National Hardware Narrow Hinge, 10 lb Weight, Door Leaf Width: 2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.128 in, Full Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1.437 in, Steel, Zinc, Dimensions: 1.564 in L x 2 in W

Key Features

  • Swaged for mortise installations
  • Loose pin allows doors to be removed without removing hinge

Item Specifications

Dimensions1.564 in L x 2 in W
Door Leaf Thickness0.056 in
Door Leaf Width2 in
FinishZinc
Frame Leaf Thickness0.056 in
Frame Leaf Width2 in
Hole Spacing1.437 in
MaterialSteel
Mounting Hole Diameter0.218 in
Mounting TypeFull Mortise
Number of Knuckles5
Number of Mounting Holes4
Pin Diameter0.128 in
Pin TypeRemovable Loose
Weight Capacity10 lb
MORE DETAILS:
  • Application: For general utility use on lightweight doors
